A typical problem that individuals experience with their ATVs is that the brakes will not create or maintain pressure for whatever reason. There can be a number of reasons why your ATV’s brakes will not build pressure. In this article, we will explore some of the potential reasons why this could be happening and how to troubleshoot and hopefully fix the problem.
Why ATV Brakes Don’t Build Pressure
There are a few potential causes for why your ATV brakes won’t build pressure. One possibility is that there is air in the brake lines, which can prevent the system from working properly. Another possibility is that there is something blocking the line or preventing old brake fluid from passing through it, such as a piece of dust or dirt. Finally, it is also possible that there is an issue with the brake master cylinder or one of the ATV brake calipers, causing them to not function properly. Here we discuss each of these causes in more detail.
1. After changing brake components, air remains in the system:
Air can get trapped in the brake lines when you are working on them. This will cause the brakes to not build pressure and may also result in a spongy feeling when you try to apply them. When you change or remove any of the braking components that come into direct touch well with brake fluid, airflow will enter the normally enclosed brake line system. The new brake lines will be inflated to their maximum capacity. Before the brakes can begin to function properly, all of the air must be drained out of the system completely. The brakes may still feel mushy, even if you believe you’ve gotten all the air out of them. One way to troubleshoot this problem is to release any trapped air by bleeding the brake lines. You can do this using a brake bleeder kit or by having someone pump the brake pedal while you open the bleed screw on each caliper.
2. The master cylinder piston seals failed long term exposure to the outside:
If your ATV’s brakes have suddenly stopped working and you have ruled out the possibility of air in the brake lines, the next step is to check the brake master cylinder. The brake master cylinder is responsible for creating and maintaining pressure in the brake lines. If it is not functioning properly, the brakes will not build pressure. One common issue with the brake master cylinder is that the piston seals may fail over time due to exposure to the elements. When this happens, brake fluid can leak out and cause the brakes to not work correctly. If you suspect that your brake master cylinder is not working properly, you can test it by pouring a small amount of fluid into the brake fluid reservoir and seeing if the level rises. If it does not rise, then there is a good chance that the piston seals are damaged and need to be replaced.

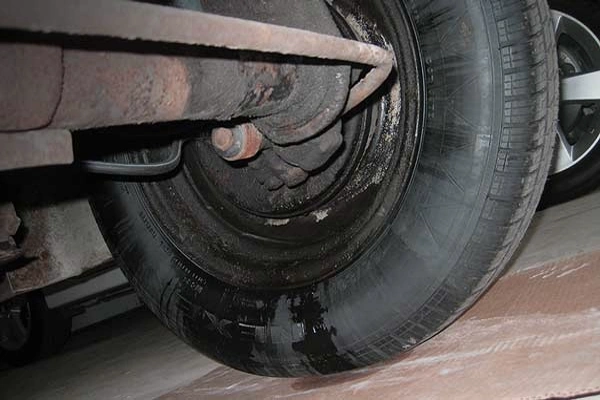

3. A Brake fluid leak in the braking system.
The most common reason that ATV brake will not build pressure is due to a leak in the system. There are many potential places for leaks, such as at the connection between the master cylinder and the brake line, at the fittings for the brake line, or at any of the seals in the system. A leak will allow brake fluid to escape from the system, which will reduce the overall pressure in the system and make it more difficult for the brakes to stop the ATV. One way to troubleshoot this problem is to check for any leaks in the system. You can do this by visually inspecting all of the brake lines and looking for any signs of damage or leakage. If you find a leak, you will need to repair it before the brakes work correctly.
4. The brake fluid has gotten polluted:
Brake fluid can become polluted over time due to exposure to the elements or from contamination during brake maintenance. When this happens, it can cause the brakes to not work correctly. The most common symptoms of contaminated brake fluid are a spongy feeling when you press the brake pedal and a reduced level of braking performance. If you suspect that your brake fluid is contaminated, you can have it tested by a professional. If it is determined that the fluid is indeed contaminated, you will need to flush the system and replace the brake fluid with new and clean fluid.

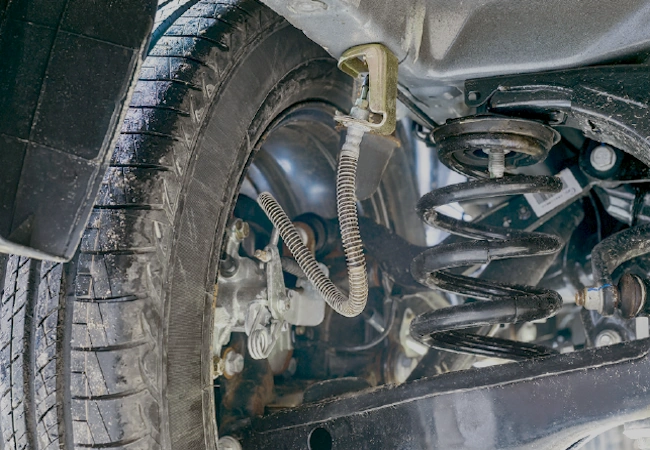

5. Cracked or rusted brake lines:
Another common reason that ATV brakes will not build pressure is due to cracked or rusted brake lines. Brake lines are made of metal, which means they are susceptible to rust and corrosion over time. Additionally, they can be damaged by rocks or other debris while you are riding. If a brake line is damaged, it can cause brake fluid to leak out and reduce the overall pressure in the system. As a result, the brakes may not work correctly. If you suspect that your brake lines are damaged, you can inspect them for any signs of damage or leakage. If you find a leak, you will need to repair or replace the damaged line before the brakes work correctly.
6. Not adjusting brake shoes before bleeding:
If you are experiencing problems with your ATV’s brakes, the sooner thing you should do is check the brake shoes. The brake shoes are responsible for applying pressure to the brake rotor and stopping the ATV. If they are not adjusted properly, they may not be able to apply enough pressure to stop the ATV. One way to adjust the brake shoes is by using the adjusting screws on the caliper. Another way is by using a brake tool to move the brake shoes closer or farther away from the rotor. If you have recently bled your brakes and they are still not working correctly, it is possible that you have not adjusted the brake shoes properly. Make sure that the brake shoes are set so that they make good contact with the rotor before you bleed the brakes again.
7. There are no brake drums installed:
ATVs that have disc brakes in the front and no brake drums in the rear brakes are more susceptible to this problem. The reason being is that there is nothing for the shoes to press against when you engage the brakes. This can cause the shoes to overheat and break down, which will reduce your braking power. If you have an ATV with this configuration, it is important to check the condition of your brake shoes regularly. If they show signs of wear or damage, they should be replaced as soon as possible.
8. Leak of moisture into the master cylinder:
Moisture can enter the master cylinder through the bleeder screws. When this happens, it can cause the brake fluid to become contaminated and reduce the overall pressure in the system. As a result, the brakes may be unable to function properly. The presence of moisture in your braking system may cause your brake pedal to feel weak or your brakes to not perform as effectively as they should. If this is the case, your brakes should be replaced. You can check for this by removing the bleeder screws and inspecting the brake fluid for any signs of contamination. If you find moisture in the system, you will need to flush it out and replace the fluid with new, clean fluid.
9. The master cylinder cannot feed new brake lines after they are installed:
If you have recently replaced your brake lines and they are not functioning correctly, it is possible that the problem is with the master cylinder. The master cylinder is responsible for supplying hydraulic pressure to the brake lines. If it is unable to do so, the brakes will not work correctly. One common reason the master cylinder may not be able to feed new brake lines is due to a blockage in the line. If there is a blockage, the fluid will not be able to flow to the new lines, and the brakes will not work. You can check for this by inspecting your brake lines for any signs of damage or blockages. If you find a blockage, you will need to remove it and replace the line before the brakes work properly.
10. A master cylinder that is air-locked:
If your brake system is air-locked, the master cylinder will not be able to provide hydraulic pressure to the brake lines. This can cause the brakes to not work correctly. One common reason for an air-locked system is a leak in the brake lines. If there is a leak, air will enter the system and create an air-lock. You can check for this by inspecting your brake lines for any signs of damage or leakage. If you find a leak, you will need to repair or replace the damaged line before the brakes work correctly.
11. A faulty rubber seal in the brake caliper:
If the rubber seal in the brake caliper is damaged, it can cause the brakes to not function correctly. The seal is responsible for keeping the hydraulic fluid in the system, and if it is damaged, fluid can leak out. This can cause the brakes to lose pressure and not work as effectively as they should. You can check for this by inspecting the brake calipers for any signs of damage or leakage. If you find a leak, you will need to replace the seal before the brakes work correctly.
Video Credit- Partzilla
FAQ
1) Why isn’t my master cylinder producing pressure?
There are several reasons why your master cylinder may not be producing pressure. One common reason is a blockage in the line. If there is a blockage, the fluid will not be able to flow to the new lines, and the brakes will not work. You can check for this by inspecting your brake lines for any signs of damage or blockages. If you find a blockage, you will need to remove it and replace the line before the brakes operate properly.
Another reason why your master cylinder may not be producing pressure is due to a leak in the system. If there is a leak, air will enter the system and create an air-lock. You can check for this by inspecting your brake lines for any signs of damage or leakage. If you find a leak, you will need to repair or replace the damaged line before the brakes work correctly.
2) How can you determine if your brake lines have air in them?
One way to test for this is to apply pressure to the pedal and hold it. If you hear a hissing noise, then there is air in the lines. You can also check for this by inspecting the brake lines for any signs of leakage. If you find a leak, you will need to repair or replace the damaged line before the brakes perform correctly.
3) How can you remove air from your brakes without bleeding them?
You can remove air from your brakes by using a vacuum bleeder. This will allow you to remove the air from the system without having to bleed the brakes.
4) What is a common cause of an air-locked brake system?
One common cause of an air-locked system is a leak in the brake lines. If there is a leak, air will enter the system and create an air-lock. You can check for this by inspecting your brake lines for any signs of damage or leakage. If you find a leak, you will need to repair or replace the damaged line before the brakes work correctly.
5) How often should you check your brakes?
It is generally recommended that you check your brakes every six months. However, if you notice any problems with your brakes, you should have them checked as soon as possible.
6) What are some common signs that there is a problem with your brakes?
Some common signs that there is a problem with your brakes include a soft brake pedal, a spongy brake pedal, or a brake pedal that sinks to the floor. If you notice any of these problems, you should have your brakes checked as soon as possible.
7) What are some common causes of a soft brake pedal?
One common cause of a soft brake pedal is air in the system. This can be caused by a leak in the system or by blockages in the lines. Another common cause of soft brake pedals is a leaking master cylinder. If the master cylinder is leaking, fluid will be able to escape, and air will enter the system. This can cause the brakes to not work correctly.
8) Why aren’t my brakes gathering pressure?
There are several explanations why your brakes may not be gathering pressure; for example, a brake sealant might have leaked out. You can look for evident damage to the car’s body and check the brake calipers for leakage. If you find a leak, you will need to replace the rubber seal before your car’s stopping power will improve.
Another possible explanation for low pressure in the braking system could be air getting into the tubes. This trouble is detectable by either listening for escaping air sounds when you step on the pedal or looking for bubbling liquid near the master cylinders. To get rid of the air and restore proper function, take your car to a specialist who will open up the hydraulic system and release all of the trapped gas bubbles.
Conclusion:
If your ATV brakes are not building pressure, it could be due to a number of reasons. First, you should check for any leaks or blockages in the system. If you find a leak, you will need to repair or replace the damaged line before the brakes operate correctly. Another reason why your master cylinder may not be producing pressure is due to an air-lock in the system. If there is an air-lock, you can remove it by using a vacuum bleeder. Finally, if you notice any problems with your brakes, you should have them checked as soon as possible.
